Product Features

?  Plough head plough beam flip axis and l-beams,etc,main parts all selected high strength special steel is made byleading heat treatment and processing technology,while the weight of the flip plough is greatly reduced,theperformance is more reliable;

?  The whole hydraulic system of the plough(Include turn-over system,first share regulating cylinder,etc,)importedfrom Germany,longer service life and more stable performance;

?  The width of the operation can be adjusted by four grades (33138145150 or40/45153160),meet the needs ofcustomers for different working widths;

?  Ploughshare spacing 100or 120cm optional,the spacing under the beam is 90cm optional,give the plough the ability to work in any straw condition;

?  Standard depth-limiting integrated transport wheel;

?  Ploughshare and small front plough are made of special wear-resistant materials,longer service life,the ploughshareis equipped with shear bolt anti-overload device,ensure the safe use of ploughshares in difficult conditions.

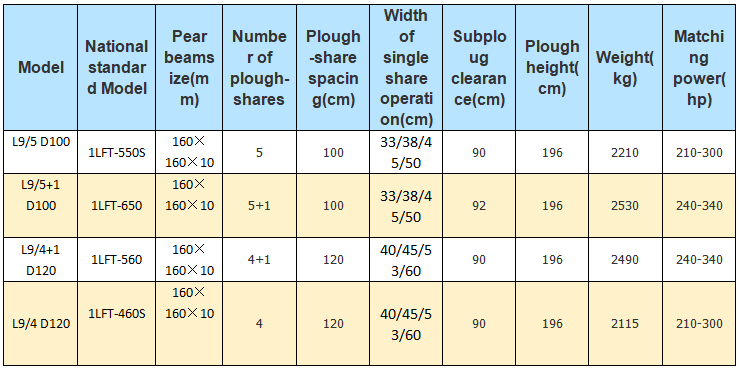

Technical Parameters
